Nukeproof Reactor 290 Comp Mens Full Suspension Mountain Bike with an old school name and a new school look.
Nukeproof

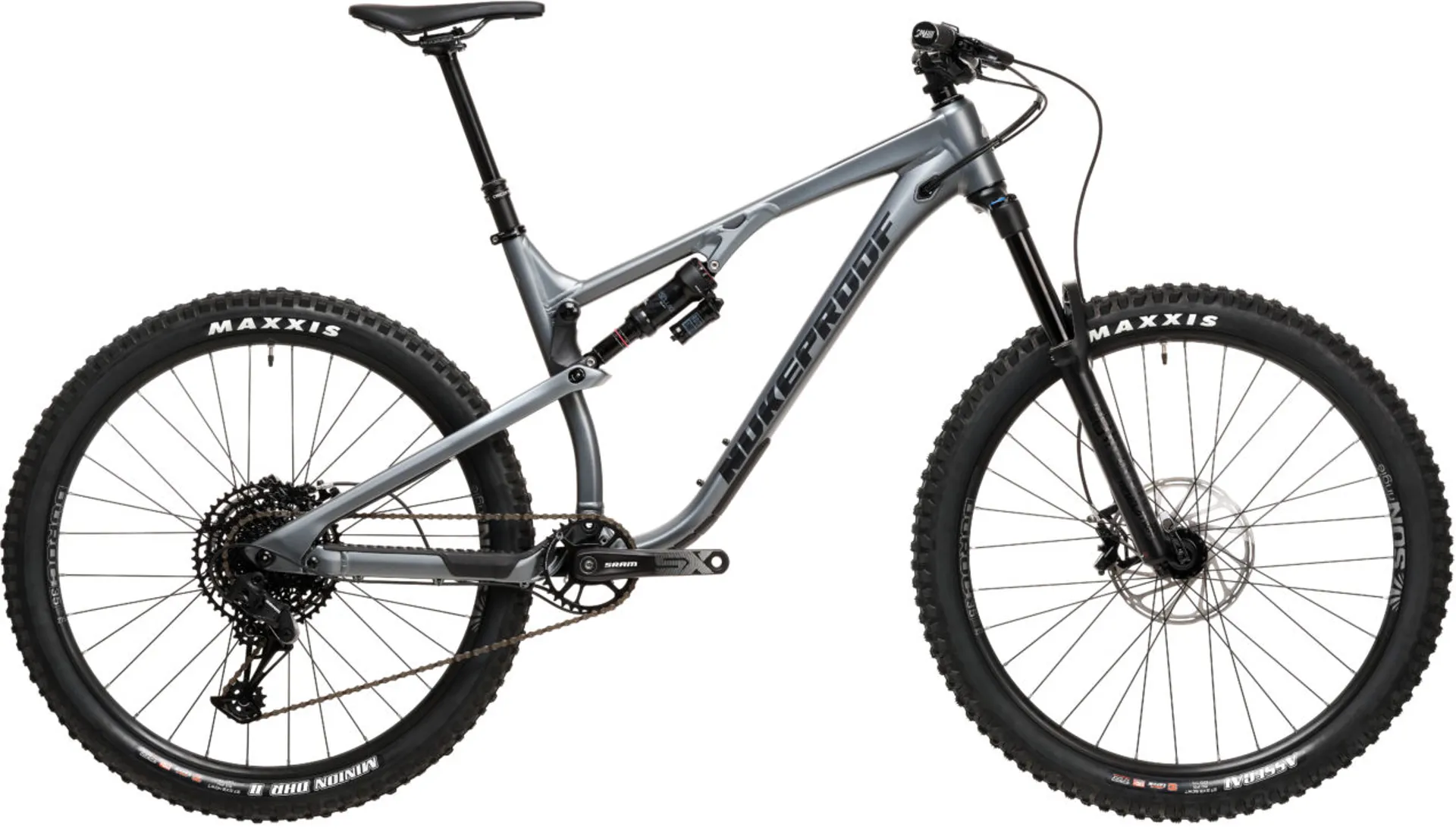

2020 Nukeproof Reactor 290 Comp Full Sus Mens Mountain Bike

£2,749.99
Earn
 in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

You Pre-Order is prioritised (at no additional charge); meaning that, as soon as the product arrives with us, we can wrap it straight back up and get it sent out to you - it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery Dates

Estimated Delivery Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery Dates provided on product pages.

The Current Estimated Delivery Date is Undetermined

2020 Nukeproof Reactor 290 Comp Full Sus Mens Mountain Bike

Season : 2020

Brand : Nukeproof

Code : 70219

Introducing the all new Nukeproof Reactor: an old school name with a very new school look. Although it takes its name from the original 1996 Nukeproof Reactor trail frame, a lot has changed in the last 23 years as it runs an all new trail focused platform.

From concept through to design, the Kinematics, the geometry and specification; the Reactor is designed from the ground up to be the ultimate aggressive trail bike. It is at home on technical climbs, but happiest when thrashing the most technical trails you can point it at.

Frame Construction:

The Alloy Reactor features a custom triple butted hydro-formed tube set and carbon seat stays, which help reduce the overall weight of the frameset. Critically this reduces the unsprung weight; making the suspension as active as possible.

The Reactor is available for 27.5” or 29” wheel sizes. These are two totally different, compromise free frames that were designed and developed at the same time.  Each frame is simply tailored around each wheel size.

Speed or play: which do you value more? The manoeuvrability of 27.5” or the raw speed of a 29”?

Adjustable Geometry:

All Reactor frames feature a “flip chip” to adjust the geometry from “Trail” to “Rail mode”.

Trail – As the name suggests, this setting is best suited for trail riding. It is for riders who get as much enjoyment from the climb as the descents.

Rail – The Rail setting turns the Reactor into a corner shredder, dropping the bottom bracket 6mm and slackening the head angle by half a degree. It is there to maximise the descending capabilities.

Suspension Design:

To ensure the bike could climb as well as it descends, we designed the 4 bar horst linkage to have higher levels of anti-squat for climbing gears but lower levels when you drop down the cassette. This means that the bike can behave itself on the climbs but when you get it up to speed, it turns into a trail hooligan. The combination of low anti-squat and progressive rate give ultimate small bump compliance (removes rough trail and root chatter) with good mid stroke support for cornering/pumping and end stroke progression for aggressive riding. Balanced anti-rise figures allow the Reactor some squat when braking hard, maintaining rider position and providing a good amount of pressure through the tyre to ensure traction. The Reactor is designed to reward the rider and ensure you get that stoke factor in on any ride.

Technical Information

Reactor 290 Alloy



Material:

Hydroformed 6061 Triple-Butted Aluminium (Front Triangle and Chain Stays) / UD Woven Carbon Fibre Seat Stays

Fork Travel:

140mm

Axle to Crown:

554mm

Fork Offset:

51mm

Shock Travel:

130mm

Wheels Size:

29″

Max Tyre Size:

2.6″

Shock Size:

210x50mm

Shock Hardware F:

25x8mm

Shock Hardware R:

30x8mm

Sizing:

M/L/XL

Headtube:

44-56mm Tapered Semi-Integrated

Headset:

ZS44-28.6 – T2 / ZS56/40 – B8

Bearings Required:

2x NP-5 (6902 2RS), 4x NP-7 (6800 2RS), 4x NP-106 (6901 2RS)

Seatpost:

31.6mm (Internal Routing for Dropper Seatpost)

Seat Clamp:

34.9mm

BB:

Threaded 73mm BSA

Rear Hub:

Boost 148x12mm

Rear Axle:

Sram Maxle Stealth M12x1.75 180mm

Chain Guide:

ISCG05

Brake Mount:

180mm Direct Post

Protection:

3D Contoured Rubber Frame Protection for DT/SS/CS



Frame

Nukeproof Reactor 290 Alloy, 130mm Travel, custom triple butted hydro-formed tube set for front triangle and chain stays, UD woven carbon fibre Seat stays, internal cable routing, custom tuned rear shock, internal dropper seatpost cable routing, Enduro bearings, threaded bottom bracket, boost 148mm rear axle spacing, 3D contoured frame protection

Fork

RockShox Revelation RC 140mm, 51mm Offset, BOOST, Debonair, Diffusion Black

Shock

RockShox Super Deluxe Select R, Custom ML Tune, 210x50mm, Bearing End (Comes with 1x bottomless token fitted so you have them if needed.)

Front Wheel

Sun-Ringle Duroc 35 Comp 29", 15x110mm

Rear Wheel

Sun-Ringle Duroc 35 Comp 29", Shimano Driver, 148x12mm

Tyres

Front: Maxxis Assegai 29”x2.5 WT 3C MaxxTerra/EXO+/TR, Rear: Maxxis Minion DHR II 29”x2.4 WT 3C MaxxTerra/EXO+/TR

Crankset

SRAM NX Eagle 12-Speed, 170mm, 30T, B148, DUB

Shifter

SRAM SX Eagle 12-Speed

Rear Deraileur

SRAM SX Eagle 12-Speed

Cassette

SRAM SX Eagle 12-Speed, CS PG1210 EAGLE 11-50T

Brakes

SRAM Guide T

Rotors

SRAM Centerline 200mm (Front), 180mm (Rear)

Handlebars

Nukeproof Horizon 25mm Rise, Width - S780mm, M780mm, L800mm, XL800mm)

Stem

Nukeproof Horizon, 50mm, Black

Grips

Nukeproof Sam Hill Signature

Saddle

Nukeproof Horizon SL, Yellow

Seatpost

RockShox Reverb Stealth with 1x Remote, 31.6mm; S: 346mm length, 125mm drop; M: 409mm length, 150mm drop; L: 462mm length, 175mm drop; XL: 514.5mm length, 200mm drop

Headset

Nukeproof, 44-56 IITS

Sizing Information

KEY

Small

Medium

Large

Extra Large

Seat Tube

NA

420/16.5"

460/18"

510/20"

Effective Top Tube

NA

610

640

675

Head Angle

NA

66 (Rail 65.5)

66 (Rail 65.5)

66 (Rail 65.5)

Head Tube

NA

105

110

115

Effective Seat Tube Angle

NA

75.5 (Rail 75)

75.5 (Rail 75)

75.5 (Rail 75)

Wheelbase

NA

1205

1235

1271

Chain Stay

NA

440

440

440

Bottom Bracket Drop

NA

-33 (Rail: -39)

-33 (Rail: -39)

-33 (Rail: -39)

Reach

NA

451

480

514

Fork Travel

NA

140

140

140

Fork Offset

NA

51

51

51

Axle to Crown

NA

554

554

554

Stack

NA

615

620

625
